NK2800
A side disc mower with impressive features!

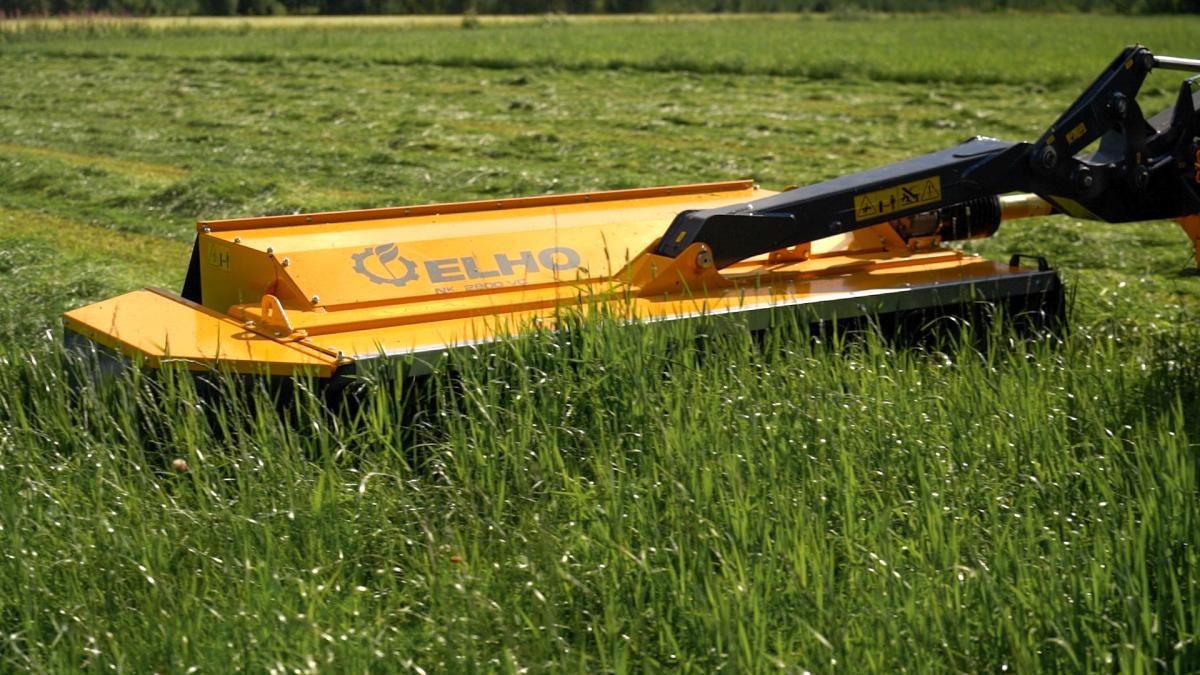

The versatile ELHO NK 2800 VC (vertical centre) disc mower meets a wide range of needs.
Vertical centre disc mowers follow the centreline of the tractor when raised for optimal stability in transport mode. HydroBalance suspension enables the cutter bar to follow the field surface precisely without hitting the ground. In the event of an obstacle, the quick release mechanism allows the disc mower to move back and forth. The disc mower then automatically returns to the working position immediately after the obstacle.
Tractor power requirement, min/max = 50-80kw
Working width = 2.8m
Number of discs = 7
Adjustable skid shoes = Yes
HydroBalance suspension = Yes
Mechanical release = automatic return
Transport width = 2.2m
Height in transport mode = 3.2m
Weight = 900kg
PTO speed = 540 RPM
Hydraulic coupling = one double action
Hydraulic pressure, min/max = 120-210bar
3 point linkage = Cat.2
