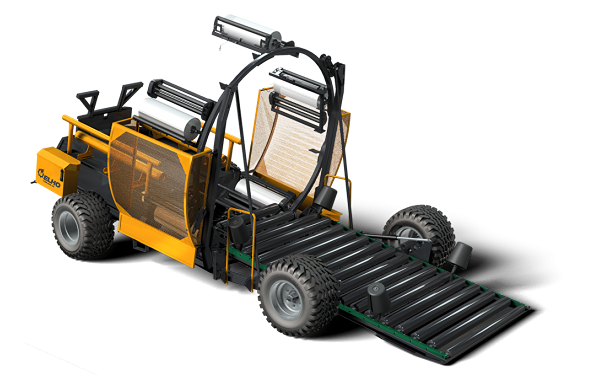

Tube 2040 ACI

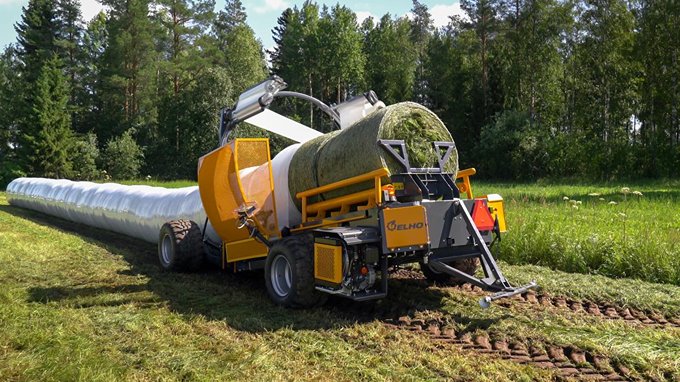

The ELHO Tube 2040 ACI is a versatile and safe tube wrapper!

ELHO began manufacturing tube wrappers back in 1993. The ELHO Tube 2040 ACI has a very durable structure, and the tube leaves the machine at an optimal angle, which is very important. The machine is equipped with its own hydraulic system with three pumps, and it features smooth film overlapping, automatic film monitoring, and the option of additional film layers at the bale seam. The Tube 2040 ACI is easy to control, and sensors detect possible malfunctions quickly. This saves expenses and increases productivity. The standard, large tyres also make the work easier specially on wet fields.

The Tube 2040 ACI is fully automatic. The wrapping begins when a bale is loaded onto the wrapping table or a remote-control button is pressed from the cab of the loading tractor. The wrapping capacity is up to 120 round bales per hour if bale availability is not restricted. The Tube 2040 ACI wraps both large round bales and square bales. Square bales can be loaded up to four at a time, depending on their size. The Tube 2040 ACI is also a very economical bale wrapper that can help to reduce the use of plastic film by more than 50%. This results in significant savings.

Engine : 16hp, diesel, electrical start
Recommended bale diameter : 1.2-1.6m
Recommended bale width : 1.2m
Max bale weight : 1400kg
Square bale : 850kg/m
Square bale max height-width : 1.6-1.4m
Feed stroke : 1.6m
Front axle steering hydraulic : Yes
Number of pre-stretchers : 2x 750 mm
Tyre size : 360/65-16
Light kit : Yes
Weight : 2850kg
Length : 5.6/6.5m
Width : 3.15m
Height : 2.85m
