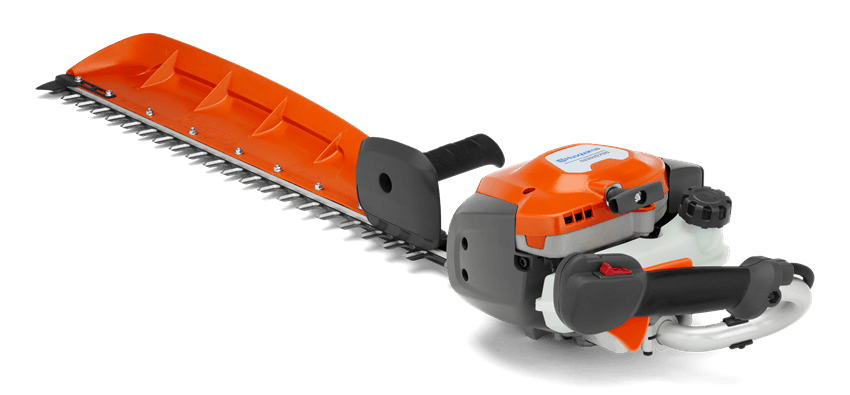

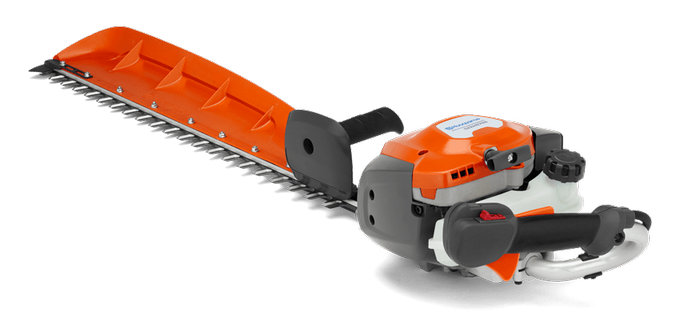

522HS75S

A 21.7cc, single-sided hedge trimmer with a 30" cutter bar for trimming jobs. Equipped with a leaf catcher for less clean-up. The comfortable handle with optimized weight distribution and impressively low weight combined with the slim, balanced design and low vibration levels provide excellent handling, while the high capacity, high-speed professional knife blade and impressive power output allows for excellent cutting performance.

Cylinder bore : 32 mm
Cylinder displacement : 21.7 cm³
Cylinder stroke : 27 mm
Electrode gap : 0.5 mm
Engine Family CARB : LHVXS.0224EC
Engine Family EPA : MHVXS.0224EC
Gear ratio : 4.09
Ignition module air gap : 0.3 mm
Spark plug : NGK CMR6A

Clutch engagement speed (±120) : 4400 rpm
Clutch engagement upper limit : 6000 rpm
Cutting speed : 4400 cut/min
Idling speed : 3000 rpm
Idling upper limit : 4400 rpm
Maximum power speed : 7800 rpm
Power output : 0.6 kW
Racing speed lower limit : 8200 rpm
Teeth opening : 30 mm

Article gross weight : 7300 g
Article net weight : 5260 g
Knife Length : 75 cm
Weight : 5.1 kg
Weight (excl. cutting equipment) : 5.1 kg
