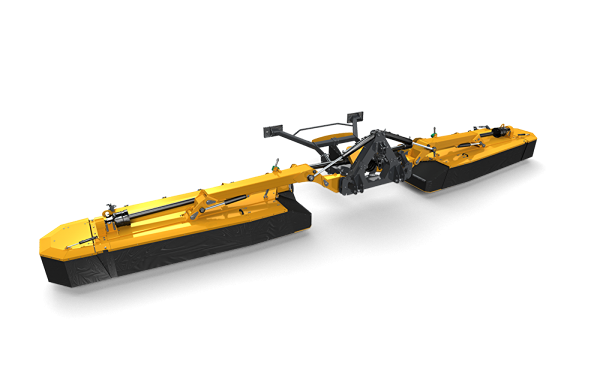

NK 9100

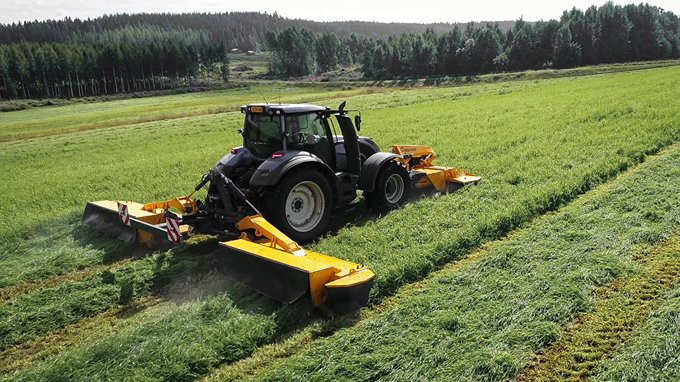

A butterfly disc mower that does not require a large tractor!

The ELHO NK 9100 is the ideal disc mower for contractors and large farms. This powerful machine offers optimal weight distribution, excellent usability, HydroBalance suspension and HydroActive impact protection.

In transport mode, the centre of gravity is over the tractor’s centreline, so even a smaller tractor remains stable. A butterfly combination with a front mounted disc mower is suitable for tractors with 150 or more horsepower.

Optional endplates make it possible to make swaths directly from the mowing bar.

Tractor power requirement : 110-150kw
Minimum recommended front mower : 3.2m
Working width : 9.1m
Number of discs : 16
Adjustable skid shoes : Yes
HydroBalance suspension : Yes
HydroActive release : Yes
Transport width : 3.2m
Height in transport mode : 3.8m
Weight : 1850kg
PTO speed : 1000 RPM
Hydraulic coupling : 2
Hydraulic pressure : 150-210bar
3 point linkage : Cat.2/3
